1.0/2.3 Right angle crimp type connector male straight 75ohm for BT3002 cable

Name: 1023 Right angle crimp type connector male straight 75ohm for BT3002 cable
Brand: OEM is available
Price: 1 USD

Place of Origin : Jiangsu,China

Certification : RoHS

Model Number : 1.0/2.3-RAMC-BT3002

Material : All Brass

Plating : Nickel Plated

Center Pin : Gold Plated

Impedance : 75ohm

Type : 1.0/2.3 RA male crimp type

Application : RG-58,RG-174,RG-316,RG-188,RG-178,RG-179,BT3002,1.5C2V,2.5C2V,ST212,ST214

Gender : male

MOQ : 100pcs

Packaging Details : Usually 1pcs/polybag and 200pcs/CTN

Delivery Time : Based on Q'ty, usually 7-15 days

Payment Terms : TT 30% deposit in advance and TT 70% balance before shipping

Delivery Terms : FOB or CIF

Brand Name : OEM is available

Price : Based on Q'ty

Supply Ability : 10000pcs/day or based on Q'ty

Contact Now

Contact Us :

Name: Carl Wu
Email: wubo@joytak.com (Please do not leave message on website)
Skype: carl-wu1984
Mobile: +86-13775367513
www.getechnol.com
www.joytak.com

1.0/2.3 Right angle crimp type connector male straight 75ohm for BT3002 cable

1.0/2.3 right angle plug crimp type connector male straight 75ohm for BT3002 cable
Cable:RG-58,RG-174,RG-316,RG-188,RG-178,RG-179,BT3002,1.5C2V,2.5C2V,ST212,ST214

1.0/2.3 connector is a kind of RF connector used for coax cable and features a slide-on (push-pull) coupling mechanism to ensure a short connect-disconnect time, impedance accuracy and easy assembly. Both 50 OHM and 75 OHM impedances are available, and offer electrical performance from DC to 10GHz(50 OHM) and from DC to 2GHz(75 OHM). 1.0/2.3 Connector Applications incloud Base stations, Cable Assemblies, Telecom, Components(filters), Datacom , Routers Switching Equipment.

Electrical
Impedance	50 ohm or 75 ohm
Frequency range	0~4GHz(50 ohm) / 0~2 GHz (75 ohm)
VSWR
VSWR
Dielectric withstanding voltage	750 V rms
Working voltage	250 V rms
Center contact resistance	6 ohm
Outer contact resistance	3 ohm
Insulation resistance	10,000 megaohms

Mechanical
Coupling	Slide-on, push-pull, threaded
Contact Retention	4 lbs
Mating torque
Mating Durability	500 matings

Environmental
Temperature Range	-40 °C to + 155 °C
Vibration
Corrosion resistance

Materials
Body, coupling nut	Brass
Insulator	Teflon
Center contact	Brass ( male) / Berllium copper or Phosphor (female)
Crimping Ferrule	Copper
Body plating	Nickel, Gold
Center contact plating	Gold

Note: These characteristics are typical but may not apply to all connectors.

Applications:

Telecom
Cable Assemblies
Satcom
Datacom
Base Stations
Routers
Instrumentation
Radio Broads

Buy cheap 1.0/2.3 Right angle crimp type connector male straight 75ohm for BT3002 cable product

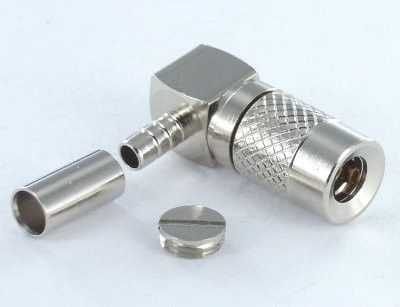

1.0/2.3 Right angle crimp type connector male straight 75ohm for BT3002 cable Images
