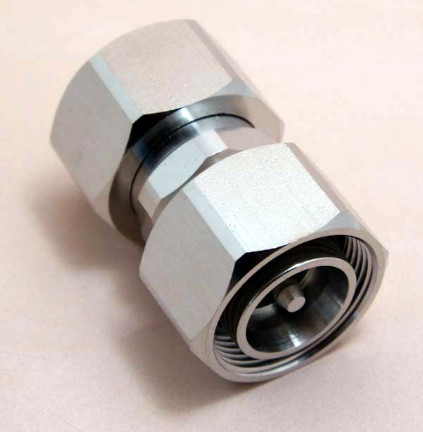

RF adapter 4.3-10 male(plug) to 4.3-10 male(plug) cheap type Jiangsu manufacturer high quality all brass 50ohm
The length and shape can be customized
For more product informations, please contact our sales team to get details.
| Note: These characteristics are typical but may not apply to all connectors. | |
| | |
| Electrical : | |
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-6GHz |
| 3 | VSWR | (DC-6GHz)≤1.15 |
| 4 | Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| 5 | Dielectric Resistance | ≥5000MΩ |
| 6 | Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ |
| 7 | Insert Loss | ≤0.0.05dB |
| 8 | PIM ( @2-tonex20w) | ≤-160dBC |
| | | |
Mechanical
| Durability | Mating cycles ≥500 |
| | |
Material and plating
| | Description | Material | Plating |
| 1 | Body | Brass | Tri-alloy |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Phosphor bronze | Ag |
| 4 | Gasket | Silicone rubber | - |
| 5 | Other | Brass | Ni |
| | | | |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
| 2 | Watertightness | IP67 |
| 3 | Rosh-compliance | Full ROHS compliance |
| 4 | Salt spraying test | 96h |
| | | |
Assembly line for RF connectors and RF cable assembly
Processing Equipments
Testing Equipments
Packaging
Products categories :
1. RF adapters (male to male, male to female, female to female)
2. RF connectors : Mini DIN 4.3-10, 4.1-9.5, DIN 7/16, N type, TNC, QMA, 1.0/2.3, SMA, SMB, SMZ, MCX, MMCX etc. for all kinds of RG401, RG402, RG405, RG174, RG178, RG179, RG316, RG142, RG58, RG59, RG223, RG213, RG214, LMR100, LMR195, LMR200, LMR240, LMR300, LMR400, LMR600, 3D-FB, 5D-FB, 7D-FB, 1/2", 1/4", 3/8", 7/8", 1-5/8" feeder cable, corrugated foam and superflex types.
3. Coaxial connectors : F Type, PAL(IEC), BNC, RCA, ( compression, crimp, PCB mount )
4. RF Attenuators
5. Lightening Arrestors
6. RF Cable Assebmlies (shrink tube and feeder cover-hot polyamide moulding )
7. Center Pin ( inner conductor )
8. Feeder Cables (Brand: Hansheng, Hengxing, Kingsignal etc, Type: 1/2", 1/2"SF, 7/8", RG59, RG6, RG174, LMR400 etc.)
9. Antennas (ZTE, MOBI etc.)
10. IBS products (splitter,coupler, combiner, 3M tape, cable clamp, Ground copper bar, Grounding kits, electric cabinet, Heat Shrink Sleeve etc.)
